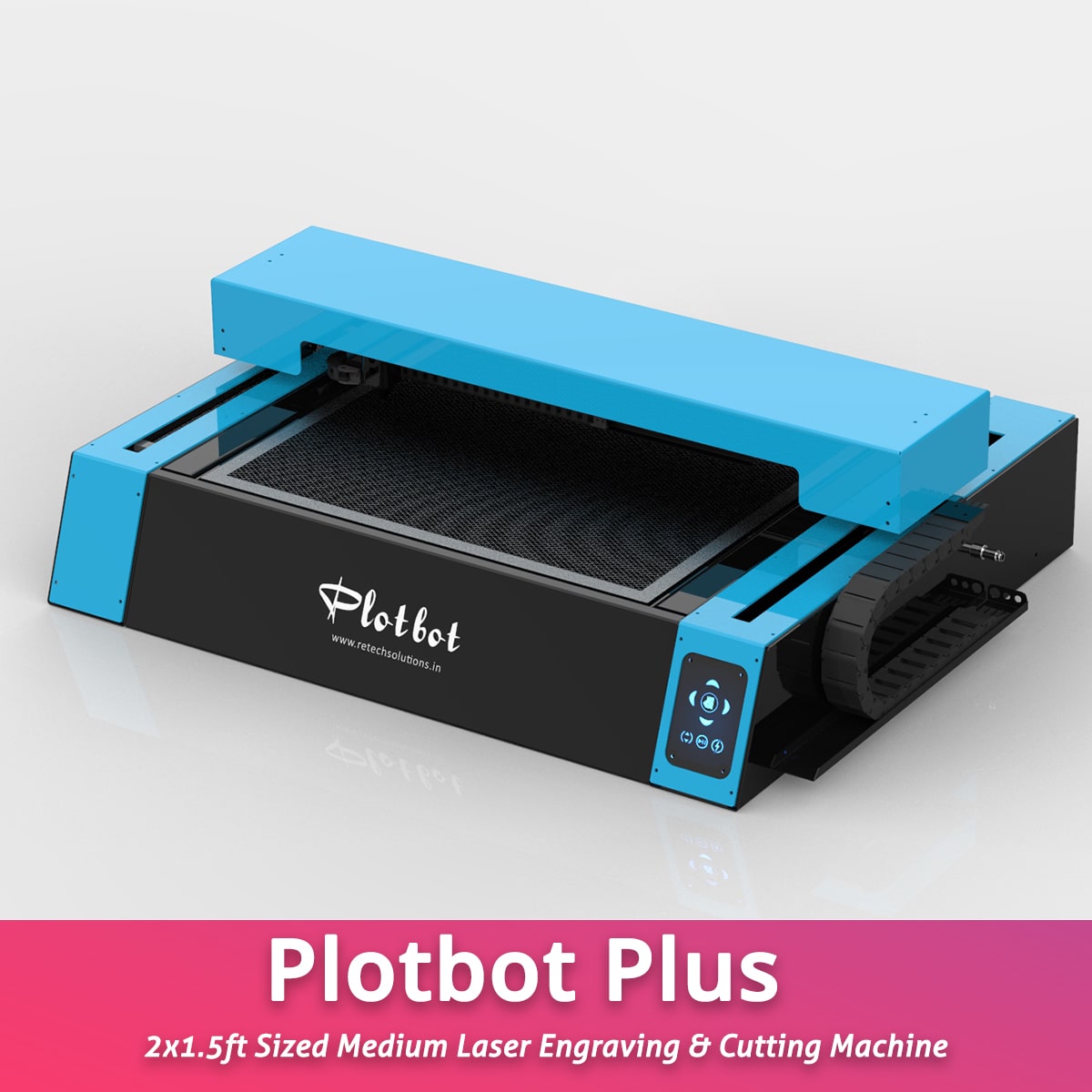

PlotBot Plus is a multipurpose laser engraver developed from scratch and equipped with 40W CO2 laser tube, PlotBot can easily engrave and cut many things, and help to make surprises in daily life. For instance, making Customized Gifts, Engineering Laser Cut Components for the technical needs, greeting cards for families, or engrave any kind of photos on the wood for decoration, etc.
Capability
- Equipped with A 40W CO2 laser tube, Plot bot is an independent XYZ Plotter with efficiency to move 500mm/s with high precision.
- The mainboard has the capability to run both the motors, but also very easy to use. Moreover, any can also control the speed and power of the motor and laser.
- High-precision: Accurate up to 0.01mm, carefully engraves every detail in an image
- Engraving area: 609mm×457mm (2×1.5 ft) with the compact machine size
Product specifications
| Product / Model | Plotbot Plus |
| Category | XY Independent 2D Plotter with height adjustment bed |
| Working Area | 2 x 1.5 Feet |
| Laser Power | 40 W |
| Laser Type | CO2, Sealed Laser Tube, Wavelength 10.6um |
| Laser Cooling System | Water Cooling |
| Motor type | 3x NEMA23 and 2x NEMA17 Stepper motors |
| Power Adjustment | 0-100% PWM Control, Adjustable in Software |
| Engraving Speed | 0-300 mm/sec |
| Cutting Speed | 0-15 mm/sec |
| Working Voltage | AC220V/110V ±10% 50Hz/60Hz |
| Running Environment | Temperature: 0-40°C. Humidity: 5%-95% (free of condensed water) |
| Supported Format | BMP, JPEG, SVG, TIF, PNG, DXF |
